A solar powered reverse osmosis system is a water treatment technology that combines photovoltaic solar panels with reverse osmosis membranes to produce clean drinking water from seawater or brackish water. These systems operate independently from electrical grids, using solar energy to power high-pressure pumps that push water through semi-permeable membranes, removing salt and contaminants. This sustainable approach to water production is particularly valuable for coastal properties, remote islands, and areas where traditional water infrastructure is unavailable or unreliable.
What exactly is a solar powered reverse osmosis system? #
A solar powered reverse osmosis system consists of three main components working together: solar panels that capture sunlight, energy storage systems for continuous operation, and reverse osmosis membranes that filter water. The solar panels convert sunlight into electricity, which powers pumps that create the pressure needed to push seawater through specialized membranes, removing salt and producing fresh water.
These systems represent a significant advancement in sustainable water technology. The solar panels typically come with 25-year warranties and are specifically designed to withstand corrosive coastal environments. The energy generated powers pumps constructed from titanium or super duplex steel materials that resist warm seawater corrosion. The reverse osmosis membranes themselves are semi-permeable barriers that allow water molecules to pass through while blocking salt, minerals, and contaminants.
What makes these systems particularly effective is their ability to operate completely off-grid. Energy storage components, often including lithium batteries, store excess solar power for use during cloudy periods or nighttime operation. This independence from traditional power infrastructure makes them ideal for remote locations where connecting to the electrical grid would be impractical or impossible. The modular design of modern systems allows for easy scaling, with production capacities ranging from 5 to 100 cubic meters per day depending on the specific needs of the location.
How does solar powered reverse osmosis actually work? #
Solar powered reverse osmosis works through a multi-stage process beginning with solar panels converting sunlight into electrical energy. This electricity powers high-pressure pumps that force seawater through pre-treatment filters and then through reverse osmosis membranes at pressures typically between 40-80 bar, depending on water salinity. The membranes separate fresh water from concentrated brine, producing clean drinking water that meets WHO standards.
The process starts when photovoltaic panels generate direct current electricity from sunlight. This power feeds into a control system that manages energy distribution and storage. The electricity drives high-efficiency pumps that create the pressure necessary for reverse osmosis – typically requiring only 3 kWh per cubic meter of water produced in modern systems. Before reaching the membranes, seawater passes through pre-treatment stages including strainers and sediment filters that remove larger particles and protect the delicate RO membranes.
The heart of the system lies in the reverse osmosis process itself. As pressurised seawater flows across the membrane surface, water molecules pass through microscopic pores while salt ions and other contaminants remain behind. This creates two streams: fresh permeate water and concentrated brine. Advanced systems incorporate energy recovery devices that capture pressure from the brine stream, reusing this energy to reduce overall power consumption by up to 70%. The fresh water then undergoes post-treatment, which may include remineralisation to improve taste and add beneficial minerals, before flowing to storage tanks for distribution.
What are the main benefits of using solar power for water desalination? #
The primary benefits of solar-powered desalination include complete energy independence, operational cost savings compared to conventional systems, zero carbon emissions during operation, and reliable water production in remote locations without grid access. These systems eliminate dependency on fossil fuels while providing consistent water supply using only renewable solar energy.
Energy independence stands as perhaps the most significant advantage. Properties no longer face vulnerability to power outages, fuel supply disruptions, or rising electricity costs. For coastal resorts and remote communities, this means predictable operational expenses and uninterrupted water supply regardless of external factors. The financial benefits are substantial – water production costs can be as low as 1-3 €/m³ including investment and 15 years of operational costs, compared to 5-10 €/m³ for current spending by resorts, villas and industries on islands and water-scarce coastal regions, or 10-20 €/m³ for trucked water in remote locations.
Environmental sustainability represents another major benefit. Solar desalination systems operate without producing carbon emissions, helping properties reduce their environmental footprint while meeting guest expectations for eco-friendly operations. The systems require no chemicals for water treatment, eliminating risks associated with chemical handling and storage. Additionally, the modular design allows for easy expansion as water needs grow, and the robust construction ensures operational lifespans exceeding 15 years with minimal maintenance requirements. Remote monitoring capabilities enable system oversight from anywhere, reducing the need for on-site technical expertise.
Where are solar powered RO systems most commonly used? #
Solar powered reverse osmosis systems are most commonly deployed in coastal resorts, private islands, remote communities, and off-grid properties across the Caribbean, Pacific islands, Mediterranean coasts, and other sunny coastal regions. These locations typically face high water costs, unreliable municipal supply, or complete absence of water infrastructure, making solar desalination an ideal solution.
Luxury resorts and private villas represent a significant user base, particularly in destinations like the British Virgin Islands, Curaçao, Belize, and the Canary Islands. These properties often pay premium prices for trucked water or operate expensive diesel-powered desalination systems. Remote island communities throughout the Pacific, including locations in the Philippines and Madagascar, rely on these systems to provide safe drinking water to hundreds or thousands of residents who previously depended on rainwater collection or unsafe sources.
Emergency response and disaster relief operations increasingly utilise portable solar desalination units. Military applications benefit from the technology’s independence from supply chains and rapid deployment capabilities. Industrial facilities in coastal areas, particularly those requiring high-quality process water, find solar RO systems valuable for reducing operational costs. Agricultural operations in arid coastal regions use these systems for irrigation water production. The technology thrives anywhere that combines three factors: proximity to seawater, abundant sunshine with at least 4-5 peak sun hours daily, and either high conventional water costs or limited access to traditional water infrastructure.
How can Elemental Water Makers help with solar desalination solutions? #

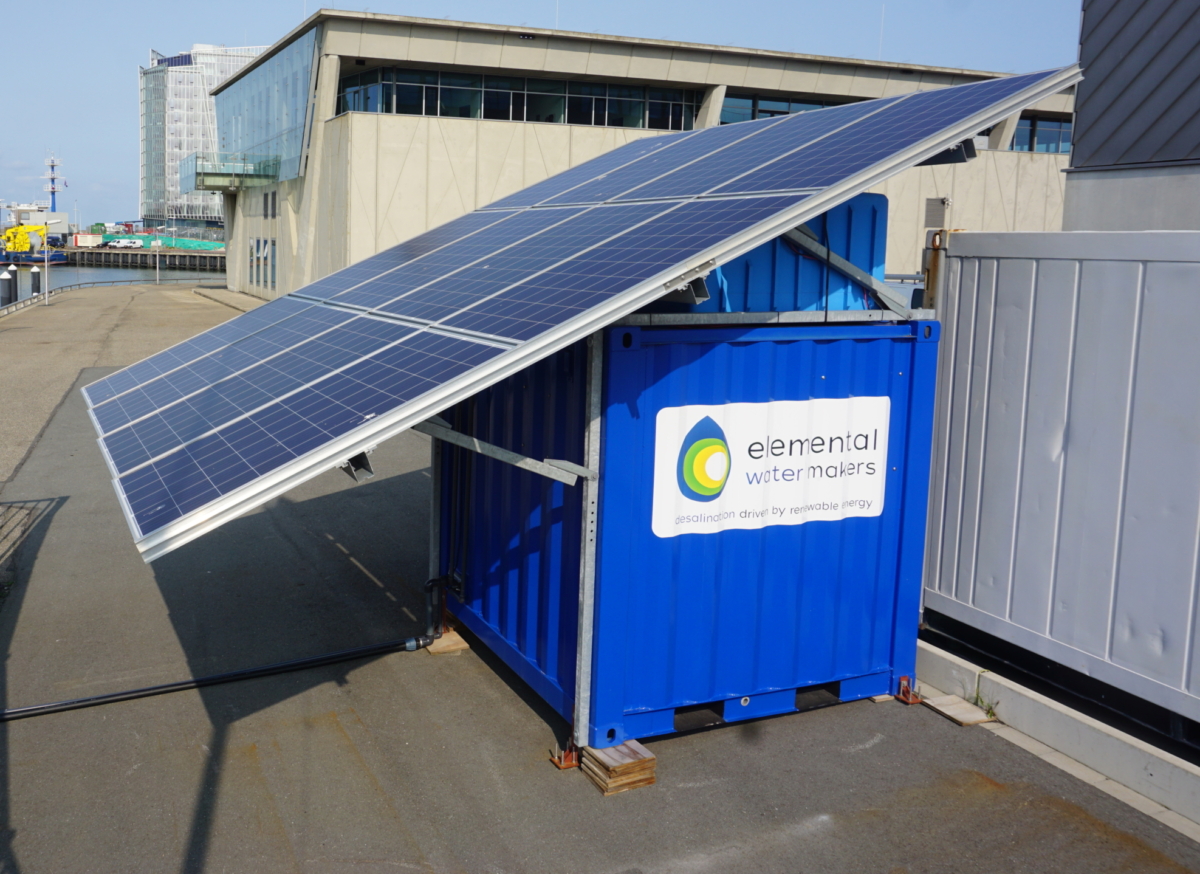

We specialise in providing turnkey solar desalination systems designed specifically for coastal properties and resorts facing water scarcity challenges. Our Elemental Water Source systems use only 3 kWh/m³ compared to 7-10 kWh/m³ for traditional desalination solutions, while our containerised plug-and-play solar desalination solutions can be operational within hours of arrival at your site.
Our approach focuses on solving the specific challenges faced by resorts and private properties. We understand that water costs of 5-10 €/m³ create unsustainable operational expenses for resorts, villas and industries on islands, while trucked water in remote regions can cost 10-20 €/m³. Our efficient desalination systems address these pain points through chemical-free operation, remote monitoring capabilities, and robust construction proven to last over 15 years in harsh coastal conditions.
We offer comprehensive support throughout your project journey. This begins with a free, location-specific assessment and system design tailored to your water needs and site conditions. Our certified partners handle installation and provide extensive operator training, ensuring your staff can confidently manage the system. Post-installation, we provide one year of free operational support and ongoing remote monitoring assistance. Our Elemental Water Source systems range from €70,000 for small systems (5 m³/day) to €450,000 for large installations (100 m³/day), while our Efficient Water Maker systems range from €40,000 for small units (11 m³/day) to €190,000 for large systems (88 m³/day). We offer direct purchase options, and for larger projects, spread payment facilities may be available depending on client financials. We can also assist with technical documentation that may be required for local permit applications, making the entire process as smooth as possible for property owners and managers.
Frequently Asked Questions #
What happens to my solar desalination system during extended cloudy periods or storms?
Modern solar desalination systems include battery storage that typically provides 1-3 days of autonomous operation during cloudy weather. For extended periods, systems can be equipped with hybrid configurations that automatically switch to grid power or generator backup when needed. Many installations in hurricane-prone areas also feature quick-disconnect mechanisms that allow operators to secure sensitive components before severe weather events, with systems designed to resume operation within hours after storms pass.
How do I determine the right system size for my property's water needs?
System sizing depends on your peak daily water consumption, occupancy rates, and future growth plans. As a general rule, resorts require 300-500 litres per guest per day, while residential properties need 150-200 litres per person. Start by calculating your maximum daily demand, then add a 20-30% buffer for peak seasons or unexpected usage. Most providers offer free water assessments that analyse your specific consumption patterns and recommend appropriately sized systems, considering factors like seasonal variations and water storage capacity.
What maintenance tasks are required and can my existing staff handle them?
Daily maintenance involves simple visual inspections and recording system parameters, which takes about 15 minutes. Weekly tasks include checking pre-filters and testing water quality, while monthly maintenance involves cleaning solar panels and inspecting pumps. Most operators can be trained to handle these routine tasks in 2-3 days. Major maintenance like membrane replacement (every 3-5 years) typically requires specialist support, but many providers offer remote diagnostic services and can guide your staff through most troubleshooting procedures via video calls.
How does the water quality from solar RO compare to bottled water or municipal supply?
Solar RO systems typically produce water that exceeds WHO drinking water standards and often surpasses bottled water quality. The multi-stage filtration removes 99.5% of dissolved salts, bacteria, viruses, and other contaminants. However, the water may taste 'flat' initially due to low mineral content. Most systems include remineralisation stages that add calcium and magnesium for improved taste and health benefits, allowing you to customise the final water profile to match local preferences or specific requirements.
What permits and approvals are typically needed to install a solar desalination system?
Permit requirements vary significantly by location but commonly include environmental impact assessments for brine discharge, coastal development permits, water extraction licenses, and electrical installation approvals for solar components. The process typically takes 3-6 months, though some jurisdictions offer expedited pathways for renewable energy projects. Working with experienced providers who understand local regulations can significantly streamline this process, as they often have pre-approved designs and established relationships with permitting authorities.
Can I start with a smaller system and expand later as my needs grow?
Yes, modular expansion is one of the key advantages of modern solar desalination systems. Most manufacturers design their systems with expansion in mind, using standardised components that can be easily added. You can start with a base unit meeting current needs and add additional membrane modules, solar panels, and storage capacity as demand increases. This approach reduces initial capital investment and allows you to validate the technology before committing to larger capacity. When planning, ensure your initial installation includes adequately sized pre-treatment systems and leave space for future solar arrays and equipment.
