RELIABLE WATER SUPPLY ON THE VIRGIN ISLANDS SAVING MONEY AND THE ENVIRONMENT

REAL-TIME PERFORMANCE OF THE SOLUTION

Allow us to showcase an operational installation on the British Virgin Islands by sharing its real-time performance. While only using 12 kWp of installed solar panels, the system is designed to produce 12,500 liters or 3,300 US gallons of fresh water from seawater on a daily basis .

This installation saves the end-user 63% on the costs for water, while at the same time avoiding the yearly emission of 25 metric tons of CO₂. Enjoy the live performance from anywhere around the world and familiarize yourself with the different components.

VIRGIN ISLANDS INSTALLATION

Current water production

520 l/hr = 137 US gph

Average water production:
12.6 m3/day = 3328 gpd

Total water produced:
11980.8 m3 = 3164997 US gallon

Total emissions avoided:
66.09 tons CO2

Water quality standards met:
check

Current solar energy used

0 Watt

Solar energy used today::
0 kWh

Total solar energy used::
45090 kWh

Footprint of the solar panels::
77 m2 = 830 ft2

Current elevated buffer capacity

55 %

Buffer equivalent without solar energy input:
21 hours of operation

Total elevated buffer capacity:
144 m3 = 38000 US gallon

CUSTOMIZED PROJECT APPROACH TO ESTABLISH FULL SATISFACTION

The project was kicked-off with a personal intake with the team of Elemental Water Makers, in which the clients requirements and demands were defined. This resulted in a tailor made project proposal, containing the footprint, costs, time-line for implementation and organization of the operations and support. Through close collaboration, this proposal was converted into a supply agreement to implement the solution. The project was carefully prepared and executed, through frequent communication with the client. The team of Elemental Water Makers managed the implementation process and delivered the turn-key solution which generates fresh water, while only using the sea, sun and earth. Local personnel have been trained to execute the maintenance tasks and through real-time remote sensing the water quality and reliability are assured.

Transport using seafreight to bring in the components
Barge transportation to reach the outer island
Submersible pump ready to be placed inside the well
Pipeline and cables in the scrubbleditch
Pipeline and cables ready to be covered with soil
Slab foundations for solar frame under construction
Construction of solar frame
The solar panels and elevated water buffer
The elevated water buffer
Installation of the reverse osmosis membranes
Prefilters, reverse osmosis and energy recovery
Through real-time remote sensing the water quality and reliability are assured
Cheers to that

REFERENCES & OTHER PROJECTS

Gravity does the Work since 2015 at private estate

British Virgin Islands

My family and I selected Elemental Water Makers to provide fresh water for our home in the British Virgin Islands because they presented us with a cost effective solution to creating a continuous supply of very high quality water -- without monthly electrical bills and without using fossil fuels. Their technical people listened carefully to our needs, were a pleasure to work with, and in the end designed a custom solution that works as promised.

After struggling for years with high electric costs, power outages and the unreliable water quality and volumes produced by our home's traditional reverse osmosis system, we now enjoy more than 3,300 gallons of fresh water every day, using nothing more than sunshine and the natural elevation of our property. And in the process, my children and I are helping to reduce the Virgin Islands' carbon footprint and preserve its precious environment for future generations.

We would recommend Elemental Water Makers without hesitation.

Paul Serini, J.D.
Director, Diamond Reef Limited
CEO, SFP Capital Partners LLC
Chairman, The Helen J. Serini Foundation, Inc.

Most private island in the world uses our solution

Belize

Water is the passion of island owners. It's an essential part of the stunning vistas and the key to privacy to the rest of the world. But it also creates an expensive sustainability issue, because the majority of the water covering the planet is undrinkable. Reverse osmosis, the most popular form of converting salt water to fresh, requires high consumption of electricity, which is not a reliable or environmentally sound option for remote islands.

For a Private Island owner in Belize, we have supplied a compact energy efficient desalination solution that produces 4800 liters or 1268 gallons on a daily basis from the surrounding seawater. During its operation, it only consumes 3.5 kWh/m³, which can be easily generated from solar panels using the ample sunshine.

''The original water supply plans weren’t sufficient for this private island hideaway. The Gladden Island team received a high-level, cost-effective desalination system, delivered on time with top-notch customer support throughout the process.'' Chris Krolow, owner Gladden Island.

Independent renewable powered water supply for eco-village

Lanzarote

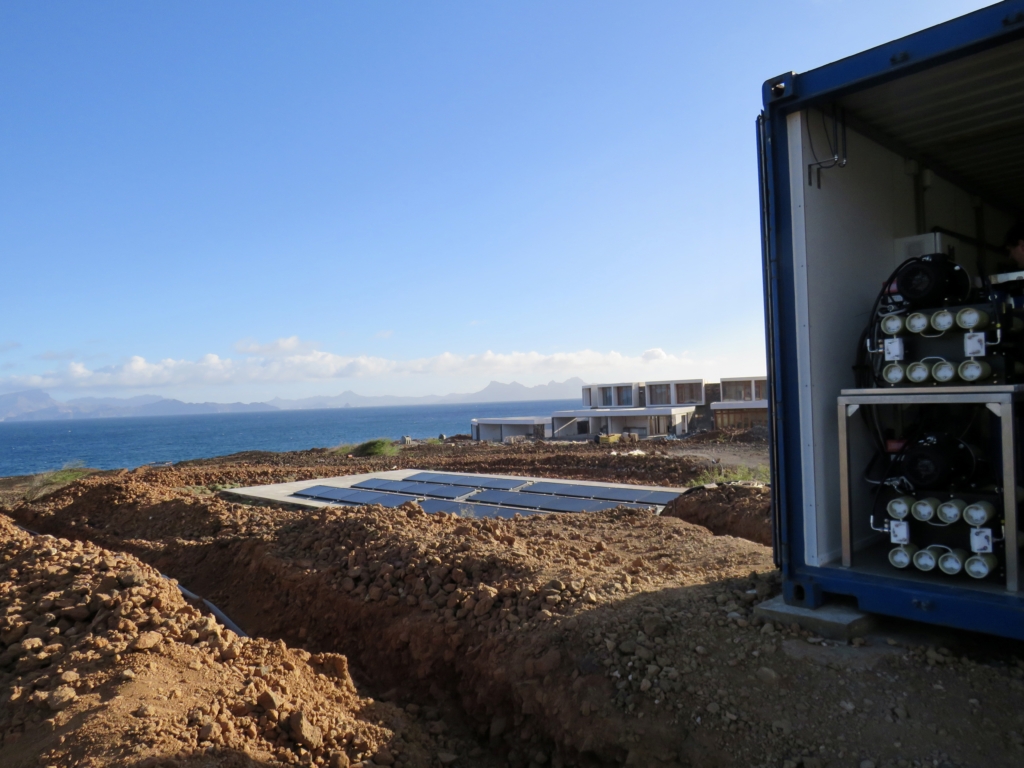

This particular resort has an ethos to embrace their guests in an alternative holiday experience, showing them that you do not have to forsake modern facilities, rich comforts and concepts of luxury in order to have a responsible and sustainable tourist experience. The fifteen environmentally friendly holiday yurts, villages and cottages are off-grid, powered by solar and wind energy. The last step in making this eco-resort fully sustainable is to arrange an independent water supply. We are currently preparing the installation of the solar and wind-powered desalination solution, that will generate safe and reliable water using unlimited resources for all guests and animals. The unit has a payback within 3 years and will save over 50% on the water costs.

''Elemental Water Makers made it possible for our eco-village to become independent on water. We are naturally powering the desalination unit by harnessing the wind & sun. I hope they will encourage the rest of the world to do the same.''  Tila Braddock, Founder Lanzarote Retreats.

An island eco lodge saves time and expenses

Mozambique

Previously, we were sailing a dhow to the mainland with a 5000-liter water tank. The crew had to walk 300 meters up and down with a petrol pump on their heads to fill the boat tank from the beach header tank. After sailing back, we would have to link the boat at high tide to the pipe that fills the water storage tanks on our island. This was hugely time-consuming, made worse by the 3.5m tide variation we have. Safety was also an issue in bad weather, that could overturn the dhow, which made us unable to load water at all in bad weather. This made water a constant issue that impacted on our construction.

Not anymore it ain't. We are delighted with the desalination solution, it has rocked our world completely.
Kevin Record, Founder and Owner Mogundula Island

Preparation of water intake for water supply for Condominium

Belize

What do you do when electricity is expensive and the piped water network is expensive, unreliable and of limited quality? This condominium requires over 8500 gallons or 32 m³ on a daily basis. This means that the cost saving we offer are huge. The solution that we are implementing results in a payback within 1 year. Currently, we have provided the water intake pump to prepare the well for the desalination solution, which is the next step to start enjoying a reliable supply of affordable fresh water.

Improving seawater intake for Desalination

British Virgin Islands

We have improved the seawater intake for an existing desalination solution for a private island in the British Virgin Islands. The old seawater intake faced much turbidity, leading to frequent replacement of the pre-filtration and reverse osmosis membranes. It also used much energy, which directly involves high cost. We were able to restore an open ocean intake, improving the feed water quality and energy efficiency. The next step will be to implement an energy efficient and renewable energy driven desalination solution.

Field Pilot for Plant Nursery

Indonesia, Bali

At this location we have constructed a small-scale pilot that produced 2.5 m³/day or 660 gpd from brackish groundwater, using only the energy from 640 Wp of installed solar panels. This project has been the result of a cooperation between the University of Technology Delft, The Netherlands and the Institut Teknologi Bandung, Indonesia and has proven the working principle of Let Nature do the Work. The project has won several prestigious innovation awards.
